Complete Guide to Cleaning Your Canon Print Head

If your Canon printer is producing streaky prints, missing colors, or blank pages, a clogged print head is the most likely culprit. Dried ink particles can block the microscopic nozzles that spray ink onto the paper. Fortunately, cleaning the print head can often restore print quality completely. This guide covers both the simple automated cleaning process and a more thorough manual method for stubborn clogs.

Method 1: Automated Cleaning via Printer Software

This should always be your first step. It's safe, easy, and resolves most minor clogs without any physical intervention. The printer uses its own ink to flush out the nozzles.

1. Access Printer Properties: On a Windows PC, go to Control Panel > Devices and Printers. Right-click your Canon printer icon and select "Printing preferences." On a Mac, go to System Preferences > Printers & Scanners, select your printer, and click "Options & Supplies," then go to the "Utility" tab.
2. Find the Maintenance Tab: In the printer preferences window, look for a "Maintenance" or "Utility" tab.
3. Run the Cleaning Cycle: Click on the "Cleaning" or "Head Cleaning" option. The printer will begin a cycle that takes a few minutes. You will hear the printer making various mechanical sounds.
4. Perform a Deep Cleaning (If Needed): If the standard cleaning didn't work, run the "Deep Cleaning" cycle. This is a more powerful version that uses more ink but can clear more stubborn blockages. Only perform this once or twice, as it consumes a significant amount of ink. Print another nozzle check pattern afterward to verify the results.
5. Print a Nozzle Check Pattern: After the cleaning cycle is complete, the software will prompt you to print a nozzle check pattern. This pattern shows you if all nozzles are firing correctly. If there are gaps or lines missing, the print head is still partially clogged.

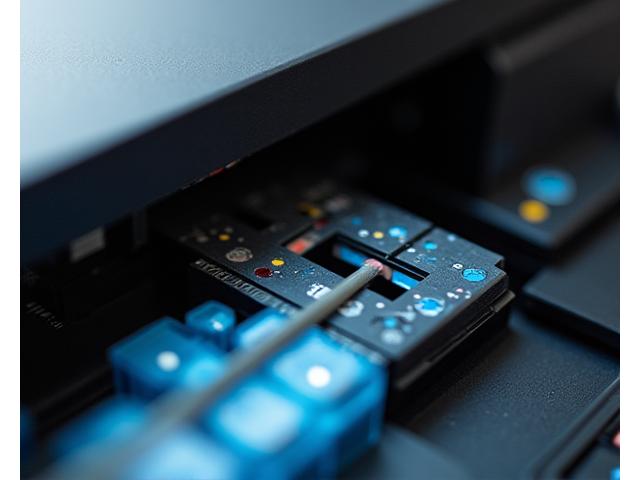

Method 2: Manual Print Head Removal and Cleaning

If automated cleaning fails, a manual cleaning may be necessary. Warning: This process carries a small risk of damaging the print head if not done carefully. Proceed at your own risk. This method applies to Canon printers with a removable print head (many PIXMA models).

What You'll Need:

• A shallow plastic container or dish
• Warm (not hot) distilled water
• Lint-free cloths or coffee filters
• Isopropyl alcohol (optional, for very tough clogs)

Steps:

1. Remove the Print Head: Turn the printer on and open the top cover. The ink cartridge carriage will move to the center. Once it stops, unplug the printer's power cord. This allows you to move the carriage by hand.
2. Remove Ink Cartridges: Gently push down on each ink cartridge until it clicks and then lift it out. Place them on a cloth with the ink port facing up.
3. Extract the Print Head: Look for a gray or black locking lever on the cartridge carriage. Lift this lever. You can now gently pull the print head cradle straight out.
4. Soak the Nozzles: Pour about half an inch of warm distilled water into your shallow dish. Place the print head, nozzle-side down, into the water. Ensure the water only touches the bottom nozzle area and does not submerge the electronic contacts on the back. Let it soak for at least one hour, or up to several hours for severe clogs. You should see ink seeping out into the water.
5. Dry the Print Head: After soaking, remove the print head and gently blot the nozzle area and the electronic contacts with a dry, lint-free cloth. Do not wipe or rub the nozzles. Allow the print head to air dry completely for at least an hour.
6. Reassemble and Test: Once dry, place the print head back into the carriage and lower the locking lever. Re-install the ink cartridges, plug the printer back in, and turn it on. Run one final automated cleaning cycle from the software utility, then print a nozzle check pattern.

If your print quality is still poor after these steps, the print head may have an electrical fault or be permanently damaged, requiring a replacement. At this stage, contacting a professional service technician is recommended.

Comprehensive Guide: Epson Paper Jam Prevention & Removal

Paper jams are one of the most common printer frustrations, but with the right techniques, they can be easily prevented and resolved. An Epson paper jam error can halt your workflow, but it rarely indicates a serious problem. This guide will walk you through the best practices for preventing jams and the safest methods for removing stuck paper without damaging your printer.

Part 1: Preventing Paper Jams – The Best Strategy

Proactive care is the key to a jam-free printing experience. Most issues stem from the paper itself or how it's loaded.

• Use High-Quality Paper: Always use paper that meets Epson's specifications (typically standard 20-24 lb bond). Avoid using paper that is too thin, too thick, damp, curled, or wrinkled. Before loading, fan the stack of paper to separate the sheets.
• Load Paper Correctly: Do not overfill the paper tray. Check the fill-line indicator inside the tray. Ensure the paper is neatly stacked and slid all the way in. Adjust the edge guides so they are snug against the paper stack, but not so tight that they cause it to buckle.
• Check for Obstructions: Before loading paper, glance inside the tray and paper path for foreign objects like paper clips, staples, or small torn pieces of paper from a previous jam.
• Store Paper Properly: Keep paper stored flat in its original packaging in a cool, dry place to prevent moisture absorption, which leads to curling and jams.

Part 2: How to Safely Remove a Paper Jam

If a jam occurs, don't panic or pull aggressively. Follow these steps carefully to avoid damaging sensitive printer components.

1. Turn Off and Unplug the Printer: As soon as you see a jam error, cancel any active print jobs from your computer. Then, turn off the printer using the power button and unplug it from the wall outlet. This prevents electrical shock and protects the printer's mechanics.
2. Locate All Jammed Paper: Carefully inspect all potential jam locations. Do not assume the paper is only in one spot.
3. Open the Top Cover/Scanner Unit: For most Epson all-in-ones, lift the scanner unit. Look for any visible paper in the main path. If the print head is obstructing the view, you should be able to slide it gently to the side once the power is off. Caution: Do not touch the translucent white encoder strip or the print head ribbon cables.
4. Check the Rear Access Door: This is the most common and effective place to clear a jam. Many Epson models have a removable panel or door on the back. Open or remove it to get direct access to the paper rollers and path.
5. Remove the Paper Carefully: Grasp the stuck paper firmly with both hands and pull it out slowly and steadily in the direction of the paper path. Avoid pulling at an angle or yanking, as this will tear the paper. If the paper tears, make sure you retrieve all the torn pieces. Small scraps left behind will cause future jams.
6. Reassemble and Restart: Once you are certain all paper fragments have been removed, close all covers and doors, including the rear access panel. Plug the printer back in and turn it on. The printer will run through its initialization sequence. Try printing a test page to ensure the issue is resolved.

If the paper jam error persists after you've thoroughly checked all areas, a small, hidden piece of paper may be blocking a sensor. Use a flashlight to inspect the interior again. If the problem continues, it may indicate an issue with a sensor or roller that requires professional service.
